Splicing quicker and more efficient
Design Features
- Reduced time for steel cord belt stripping
- Simple to operate and easy to transport and store
- Easy replacement of blades
- Strips large area decreases labor intensity and reduces the time.
- Lightweight and easy to carry.
Part Numbers
Steel Cord Stripper
Part Number | Belt Thickness | Weight |
---|---|---|
ASG-VC-SCS | Up to 1.7" | 26.5 |
Part Numbers
Blades for Cord Stripper
The minimum order quantity of each blade is 50 pieces. Blades are not part of the delivery of the cord stripper and must be ordered separately.
O = Top and U = Bottom
Blade Holder A = XX 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9 Blade Holder B = YY 10, 10.5, 11, 11.5, 12, 12.5, 13
Part Number | Cable Thickness | Weight |
---|---|---|
ASG-K 10XX-O/U | .15-.36 | - |
ASG-K 11YY-O/-U | .36-.50 | - |
Part Numbers
Power Winch CS
The capacity winch CS is an indispensable part of the cord stripper system. It is specially designed for continuous use and is especially characterized by high tensile speed, the torque and the near ground cable conduit. In addition, the signal color contributes to workplace safety. The safe operation of the supply and return takes place via the control panel (13ft long) with an emergency stop switch.
The electronic phase control ensures that the operation of supply and return is always consistent.
Part Number | Length | Weight |
---|---|---|
ASG-VC-CS-PW | Steel Rope 20 ft | 154 |
Part Numbers

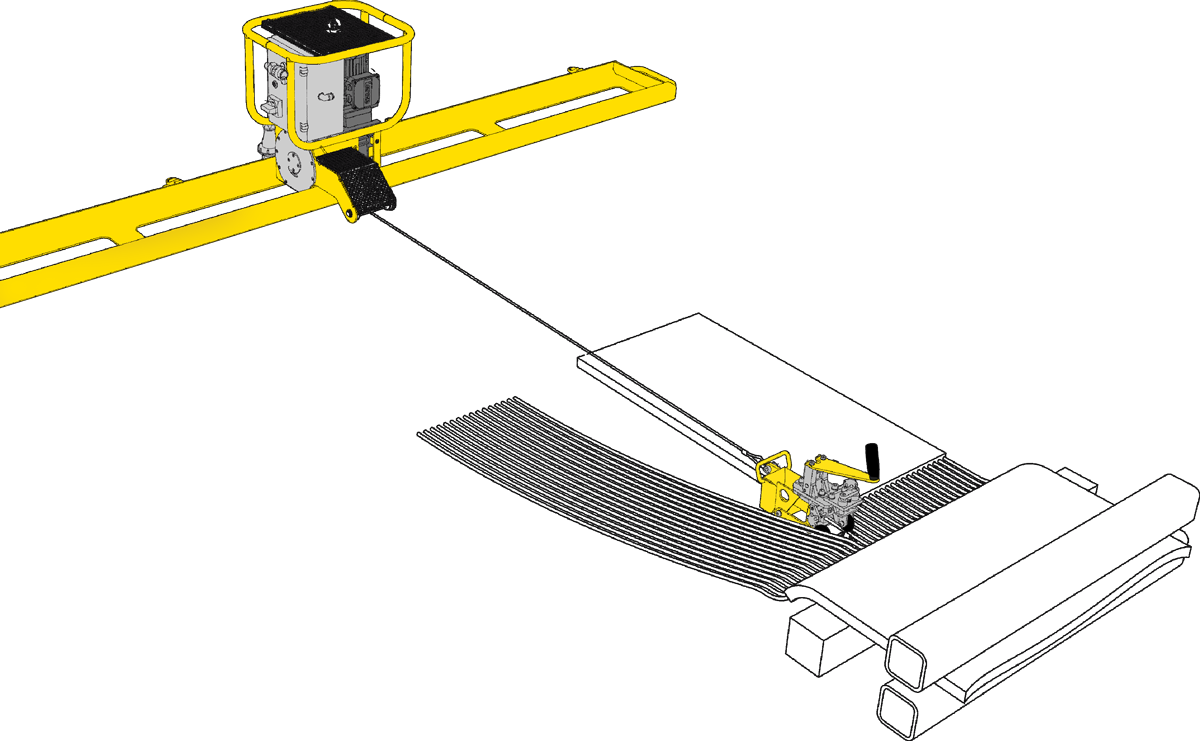

Slide Rail for Power Winch CS
The slide rail is fixed transversely to the conveyor belt and Is used to safely accommodate the Power Winch CS. By gently moving the Power Winch within the guide rail, the optimum position for the pulling direction is assured.
Part Number | Length | Weight |
---|---|---|
ASG-VC-CSPW-SR | 11.5 ft | 132 |
