ELIMINATE YOUR CONVEYOR CARRY-BACK PROBLEMS!

Design Features
  • Excellent Performance – of our patented Skalper® Blade design maintains an effective cleaning edge throughout the life of the blade with its unique horizontal sipes/wear-grooves across the entire width of the blade cleaning edge and by the use of the arc-shaped back side of the blade to ensure a sharp cleaning edge.
  • One-Time Tensioning – the patented E-Z Torque® tensioner maintains constant tension throughout the life of the blade.
  • Blade-Wear Indicator – allows to monitor blade wear easily without having to shut the system down for inspection.
  • Torque Spring – provides a greater degree of tensioning per inch of blade, verses compression springs which require more tensioning adjustment for the life of the blade.
  • Rubber Corrugated Dust Covers and UHMW Bushings – ensures no build-up in the spring tensioning area and provides smooth non-binding tensioning.
  • Quick-Change Blade – stainless steel pin blade change-out system uses no-tools.
  • Easily Maintained – and tensioned from one side of the conveyor.
  • MSHA Accepted – #MSHA IC – 174/1

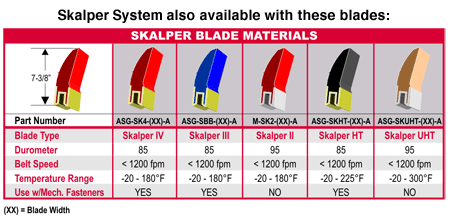

Skalper® Blade Options and Specifications
ASGCO E-Z Torque<sup>®</sup> Tensioner Skalper<sup>®</sup> Belt Cleaner

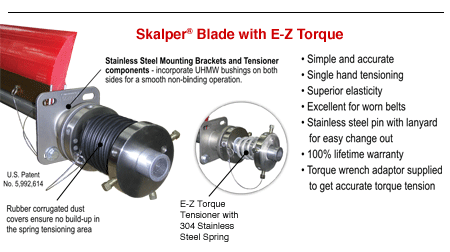

E-Z Torque® Tensioner

One-Time Tensioning – the patented E-Z Torque tensioner maintains constant tension throughout the life of the blade

Torque Spring – provides a greater degree of tensioning per inch of blade verses compression springs which require more tensioning adjustment for the life of the blade

Rubber Corrugated Dust Covers and UHMW Bushings – ensures no build up in the spring tensioning area and provides smooth non binding tensioning

Quick-Change Blade – stainless steel pin blade change out system uses no-tools

100% LIFETIME WARRANTY

Gallery

Product Specifications

Maximum Belt Speed – 1000fpm (5.0 m/sec)

Pulley Diameter – 12″ – 36″ (300 – 900mm)

Applications – Coal Fired Power Plants, Hard Rock Mining, Steel Mills, Iron Ore, Aggregate and Mineral (Phosphate, Potash, Salt) Mining

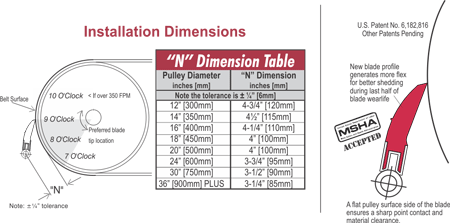

BLADE ANGLE

A flat pulley surface side of the blade ensures a sharp point contact and material clearance.

  • More Aggressive
  • Self-Sharpening
  • Less Abrasion Between Blade and Belt
  • Less Chance of Blade Feathering
ASGCO Skalper<sup>®</sup> Belt Cleaner Specs



Part Numbers

Skalper® Systems with E-Z Torque® Tensioner

Skalper Systems with all necessary mounting components in one economical package. Each System includes: one (1) Skalper Blade,(1) Transverse Mounting Element,(1) Mounting Assembly Kit,(1) E-Z Torque Tensioner. ** Please specify SK 2, SK 4, HT, UHT when ordering.

Part Number Belt Width in. Belt Width mm. Blade Width in. Blade Width mm. Weight lbs
M-SK*-SYS-18-EZT-2 18 450 18 450 61
M-SK*-SYS-24-EZT-2 24 600 24 600 68
M-SK*-SYS-30-EZT-2 30 750 30 750 75
M-SK*-SYS-36-EZT-2 36 900 36 900 82
M-SK*-SYS-42-EZT-2 42 1050 42 1050 87
M-SK*-SYS-48-EZT-2 48 1200 48 1200 96
M-SK*-SYS-54-EZT-2 54 1350 54 1350 103
M-SK*-SYS-60-EZT-2 60 1500 60 1500 110
M-SK*-SYS-72-EZT-2 72 1800 72 1800 124
M-SK*-SYS-84-EZT-2 84 2100 84 2100 138

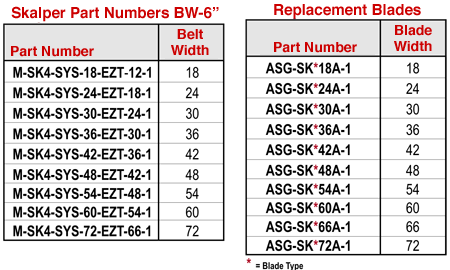

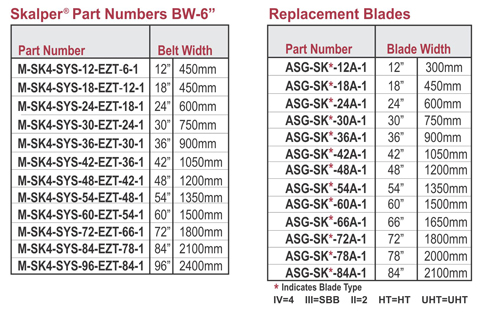

Part Numbers


Skalper® Systems with E-Z Torque® Tensioner (BW-6)

Skalper® Systems with all necessary mounting components in one economical package. Each System includes: one (1) Skalper® Blade, (1) Transverse Mounting Element, (1) Mounting Assembly Kit,(1) E-Z Torque® Tensioner. ** Please specify SK 2, SK 4, HT, UHT when ordering

Part Number Belt Width in. Belt Width mm. Blade Width in. Blade Width mm. Weight lbs
M-SK*-SYS-18-EZT-12-2 18 450 12 300 59
M-SK*-SYS-24-EZT-18-2 24 600 18 450 66
M-SK*-SYS-30-EZT-24-2 30 750 24 600 73
M-SK*-SYS-36-EZT-30-2 36 900 30 750 80
M-SK*-SYS-42-EZT-36-2 42 1200 421 1050 94
M-SK*-SYS-48-EZT-42-2 48 1200 42 1050 94
M-SK*-SYS-54-EZT-48-2 54 1350 48 1200 101
M-SK*-SYS-60-EZT-54-2 60 1500 54 1350 108
M-SK*-SYS-72-EZT-66-2 72 1800 66 1650 122
M-SK*-SYS-84-EZT-78-2 84 2100 78 1950 136

Part Numbers

Skalper® Systems with E-Z Torque® Tensioner (BW-12)

Skalper® Systems with all necessary mounting components in one economical package. Each System includes: one (1) Skalper® Blade, (1) Transverse Mounting Element, (1) Mounting Assembly Kit,(1) E-Z Torque® Tensioner. ** Please specify SK 2, SK 4, HT, UHT when ordering

Part Number BELT WIDTH IN. BELT WIDTH MM. BLADE WIDTH IN. BLADE WIDTH MM. WEIGHT LBS
M-SK*-SYS-36-EZT-24-2 36 900 24 600 80
M-SK*-SYS-42-EZT-30-2 42 1060 30 760 85
M-SK*-SYS-48-EZT-36-2 48 1200 36 900 94
M-SK*-SYS-54-EZT-42-2 54 1350 42 1060 122
M-SK*-SYS-60-EZT-48-2 60 1500 48 1200 108
M-SK*-SYS-72-EZT-60-2 72 1800 60 1500 122
M-SK*-SYS-84-EZT-72-2 84 2100 72 1800 136
