Tapered Troughing Idler

The Best Conveyor Belt Tracking Idler for Tough Mining Conditions

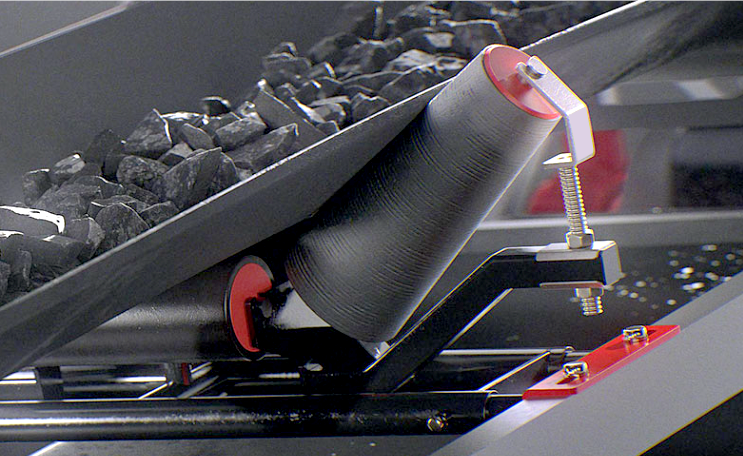

The patented ASGCO^® Tru-Trainer^® Tapered Trougher Idler offers the ultimate in tracking performance on the load-carrying side of the conveyor and is the result of over 10 years of design and innovation. This design is highly responsive and quick to activate on both loaded and unloaded conveyors.

Tapered Troughing Idler

The Best Conveyor Belt Tracking Idler for Tough Mining Conditions

TRU-TRAINER^® TAPERED TROUGHING IDLER

Design Features

Exceptional Performance – The combination of the tapers and unique center pivot, provide fast, reactive and continual tracking in all conditions
Individual rollers for easy replacement – Both the taper wing and center roller can be individually replaced as wear occurs
Enhanced Center Pivot – The unique heavy duty pivot design provides instant activation to centralize the belt to keep it running center.
Maintenance Free – Bearings do not require any greasing
Lagging – Available in High Abrasive, Rubber Lagging 1/2″ thick or Polyurethane Lagging 1/2″ (Red). Also available in Fire Retardant lagging.
Operates in all conditions – Quick activation on both wet and dry conveyor belts,
Versatile Installation – Minimum tension is required on the center rolls, which can be easily adjusted with the supplied mounting brackets.
Reversing Belts – Excellent performance. Available from 18 in.-84 in. (Bigger sizes can be made to order)

Tru-Trainer^® Tapered Trougher Idler

As the taper wing rollers are inline, it operates on both on Uni-directional or Bi-directional conveyor belts. The tracking is done by the tapered wing rollers which are lagged and can be easily adjusted between 30°- 50°. The tapered wing rollers ensure that the idler activates immediately as the belt moves off-center.

Belt Width 18” – 84”
Wing Rolls are available in Rubber and Urethane

Tru-Trainer^® Tapered Trougher Urethane Idler

As the taper urethane wing rollers are inline, it operates on both on Uni-directional or Bi-directional conveyor belts. The tracking is done by the tapered wing rollers which are lagged and can be easily adjusted between 30°- 50°. The tapered wing rollers ensure that the idler activates immediately as the belt moves off-center.

Belt Width 18” – 84”
Wing Rolls are available in Rubber and Urethane

PRODUCT SPECIFICATIONS

Application – Aggregate, Cement, Mineral (Phosphate, Potash, Salt) Mining, Underground Mining, Coal Fired Power Plant, Hard Rock Mining, Metals (Copper/Gold) Mining, Steel Mill, Iron Ore, Bulk Shipping Terminals

Part Numbers

Tru-Trainer^® Tapered Troughing Idler

Part Number	Belt Width in.	Belt Width mm.	Weight lbs
ASG-TTTT-45-TD-1	18	450	94
ASG-TTTT-60-TD-1	24	600	110
ASG-TTTT-75-TD-1	30	750	116
ASG-TTTT-90-TD-1	36	900	186
ASG-TTTT-105-TD-1	42	1070	200
ASG-TTTT-120-TD-1	48	1200	248
ASG-TTTTHD-135-TD-1	54	1350	260
ASG-TTTTHD-150-TD-1	60	1500	291
ASG-TTTTXHD-180-TD-1	72	1800	440
ASG-TTTTEXHD-210-TD-1	84	2100	485

Part Numbers

Tru-Trainer^® Tapered Troughing Urethane Idler

Part Number	Belt Width in.	Belt Width mm.	Weight lbs
ASG-TTTT-45-TD-UE-1	18	450	94
ASG-TTTT-60-TD-UE-1	24	600	110
ASG-TTTT-75-TD-UE-1	30	750	116
ASG-TTTT-90-TD-UE-1	36	900	186
ASG-TTTT-105-TD-UE-1	42	1070	200
ASG-TTTT-120-TD-UE-1	48	1200	248
ASG-TTTTHD-135-TD-UE-1	54	1350	260
ASG-TTTTHD-150-TD-UE-1	60	1500	291
ASG-TTTTHD-180-TD-UE-1	72	1800	440
ASG-TTTTHD-210-TD-UE-1	84	2100	485
