Modular Conveyor Belt Load Zone System

Design Features
  • Environmentally Friendly – due to significant reduction of airborne and fugitive dust and avoiding any risk of product loss in the loading area.
  • Increased Productivity – and longer conveyor belt life because the completely sealed load zone helps eliminate material turbulence and conveyor belt cover abrasion.
  • Lower Maintenance Costs – by having an easily accessible, fully contained system that allows easy replacement of the rubber skirting.
  • Modular Design – can be installed in any combination of 4’ (1200mm) or 5’ (1500mm) lengths to completely cover load zone area. Quickly removable dust hoods, slide-out side sections and removable center rolls aid in the installation and maintenance of the system.
  • Made in the USA – completely engineered, designed, fabricated and stocked in the USA.

OPTIMIZES SEALING

Pro-Zone™ Systems – are available in 4’ with 2 cross beam support and 5’ with 3 cross beam support with optional inspection door. Can be custom made to meet desire goal.

Idler Roller – removable center rolls ensure ease of access and total safety.

Accessories – Optional Load Zone Chute, Dust Curtain, Rear Black Plate, Internal Liner, Tru-Trainer Belt Tracking Idler, Chute Inspection Doors, V-Plow XD™ and Safe-Guard™ Return Idler Guard.

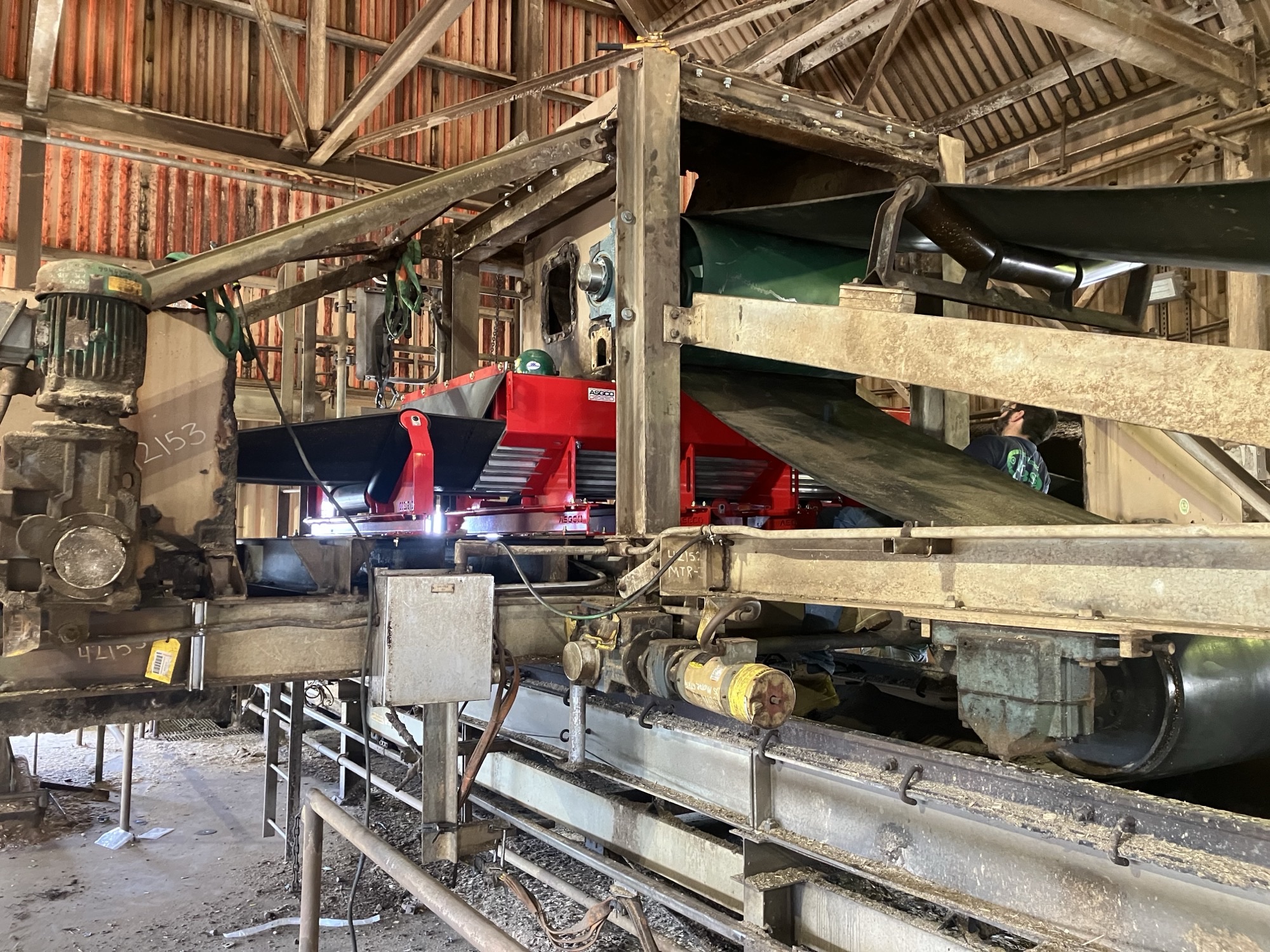

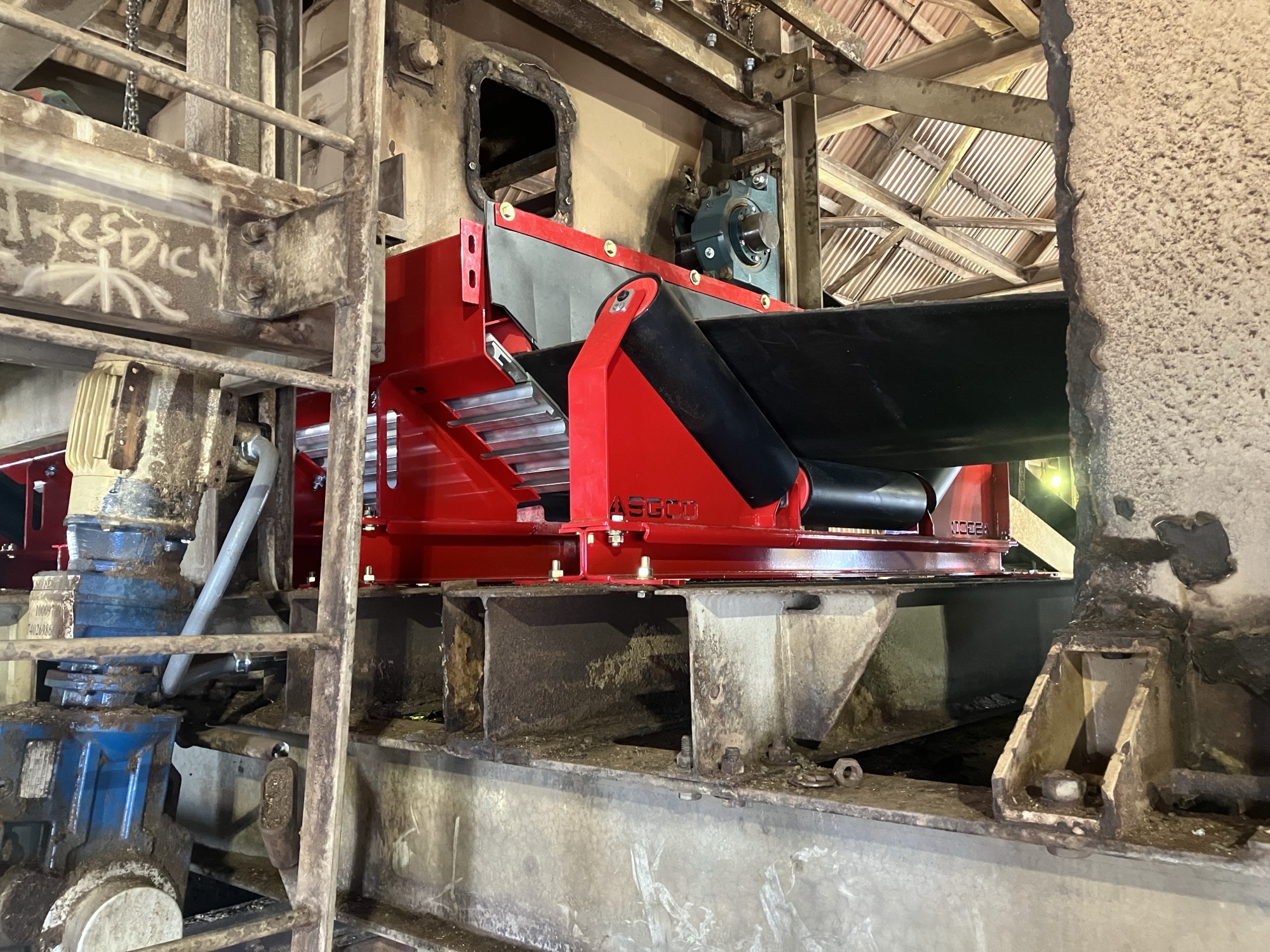

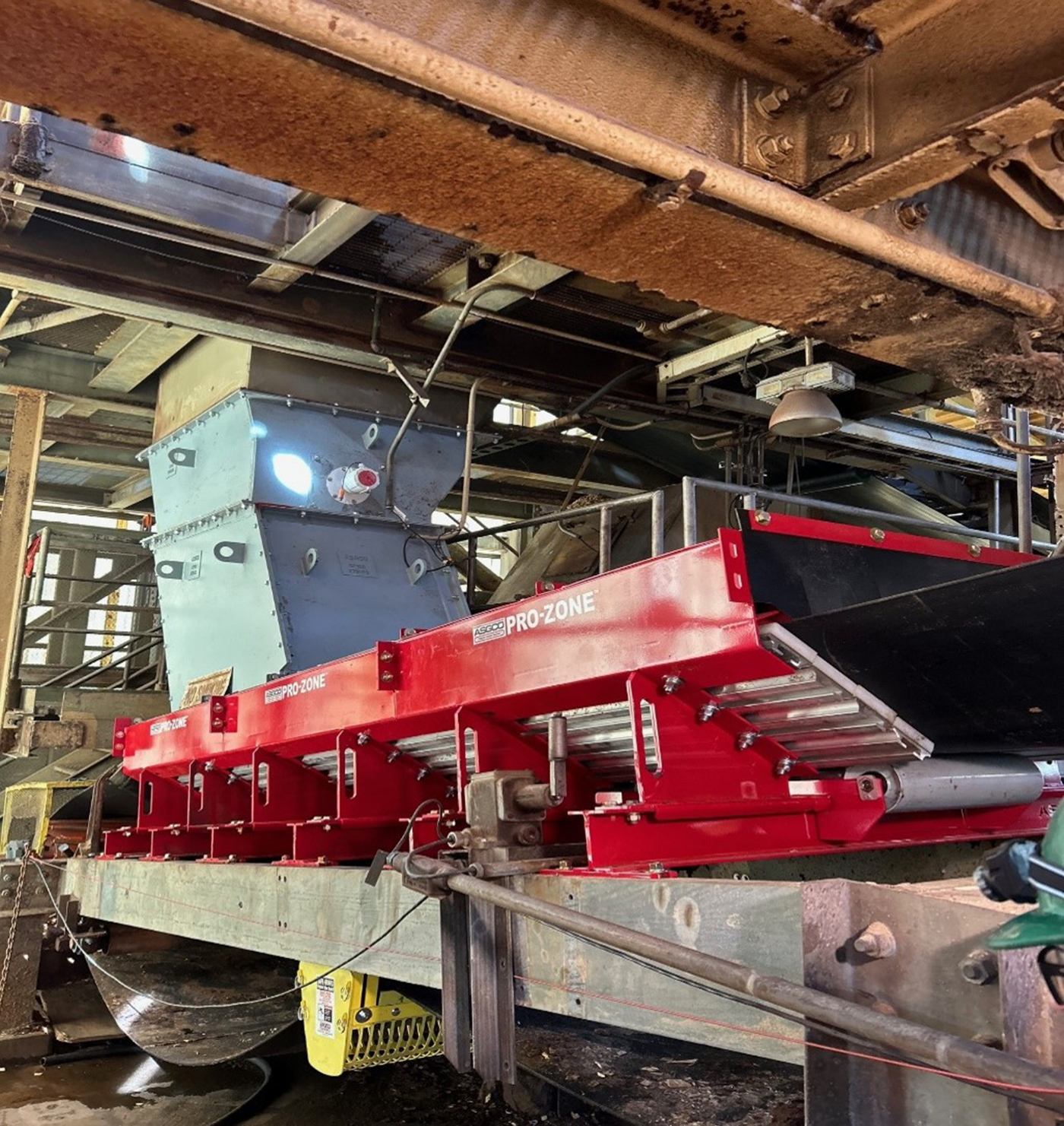

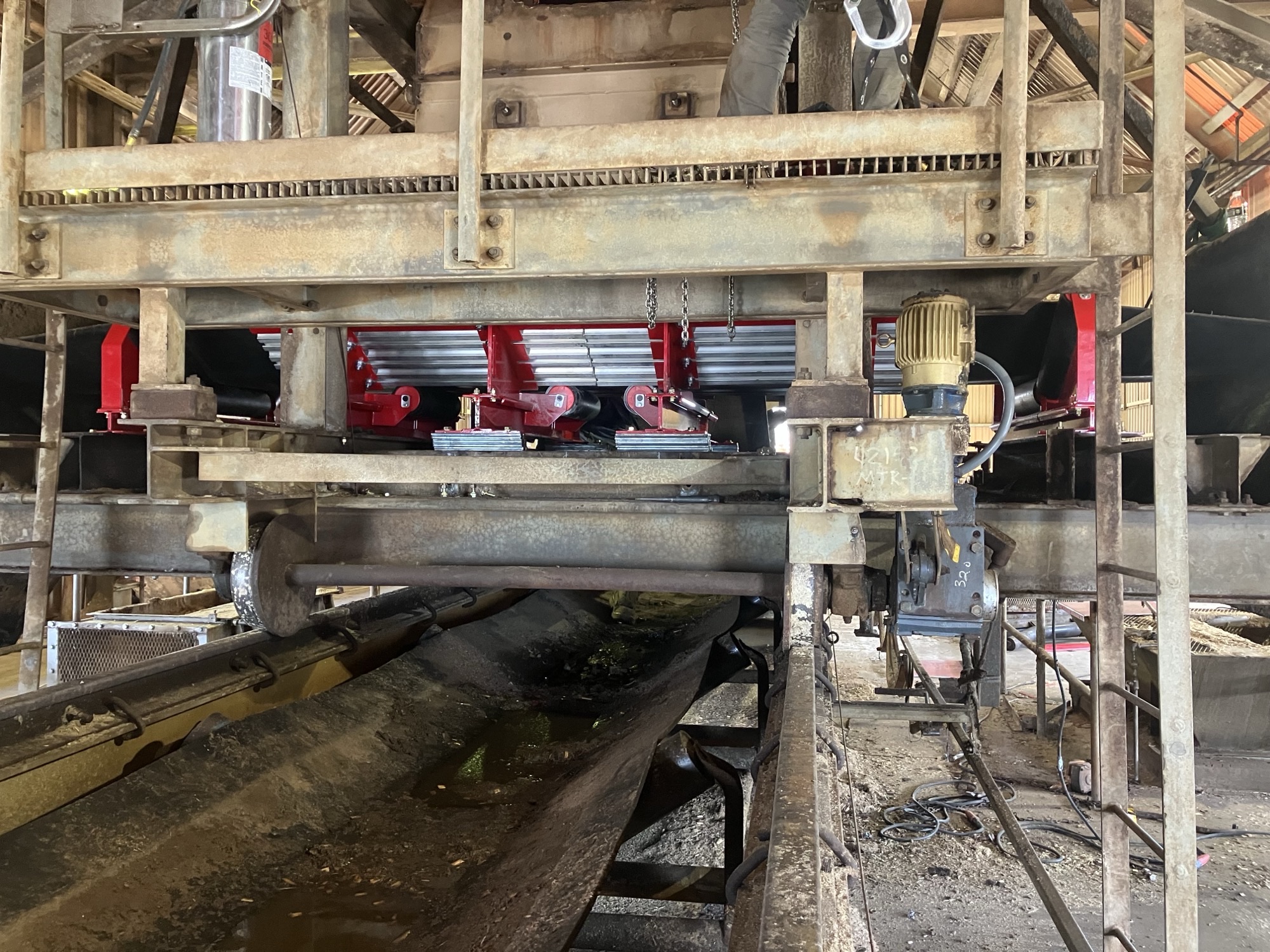

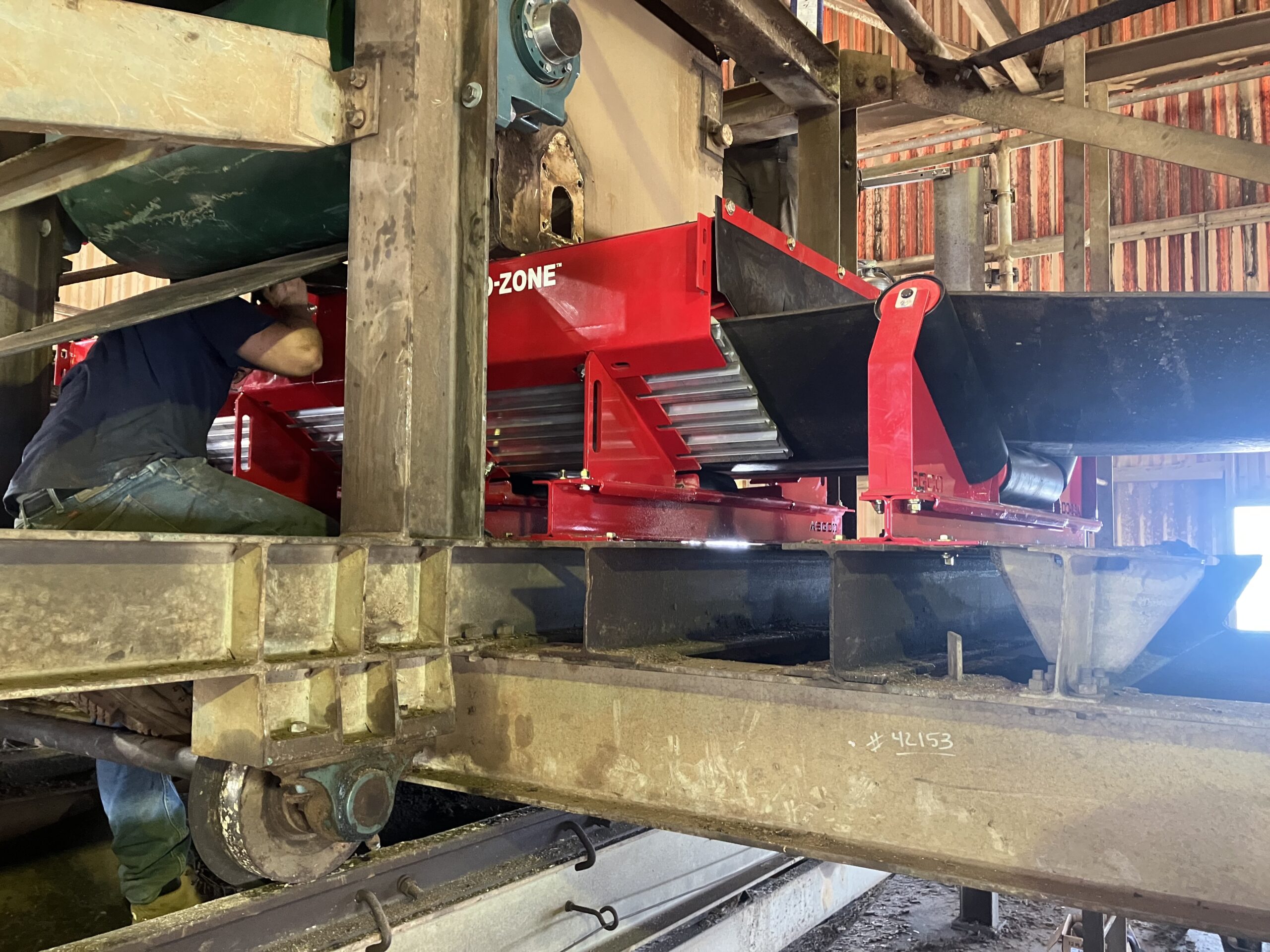

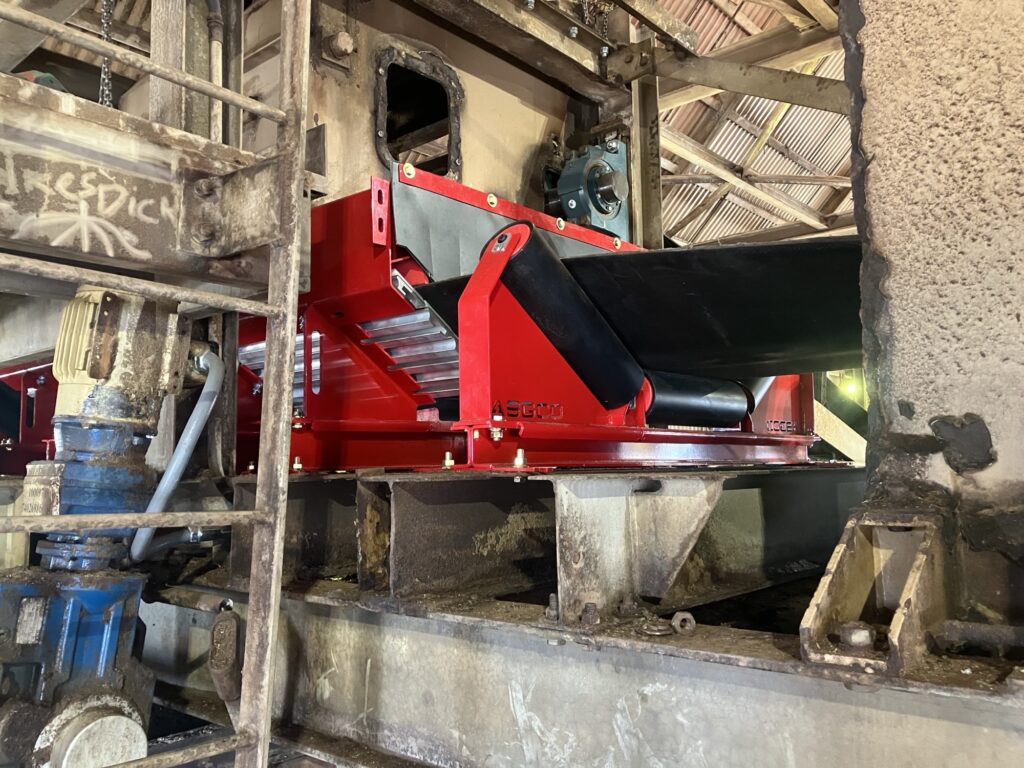

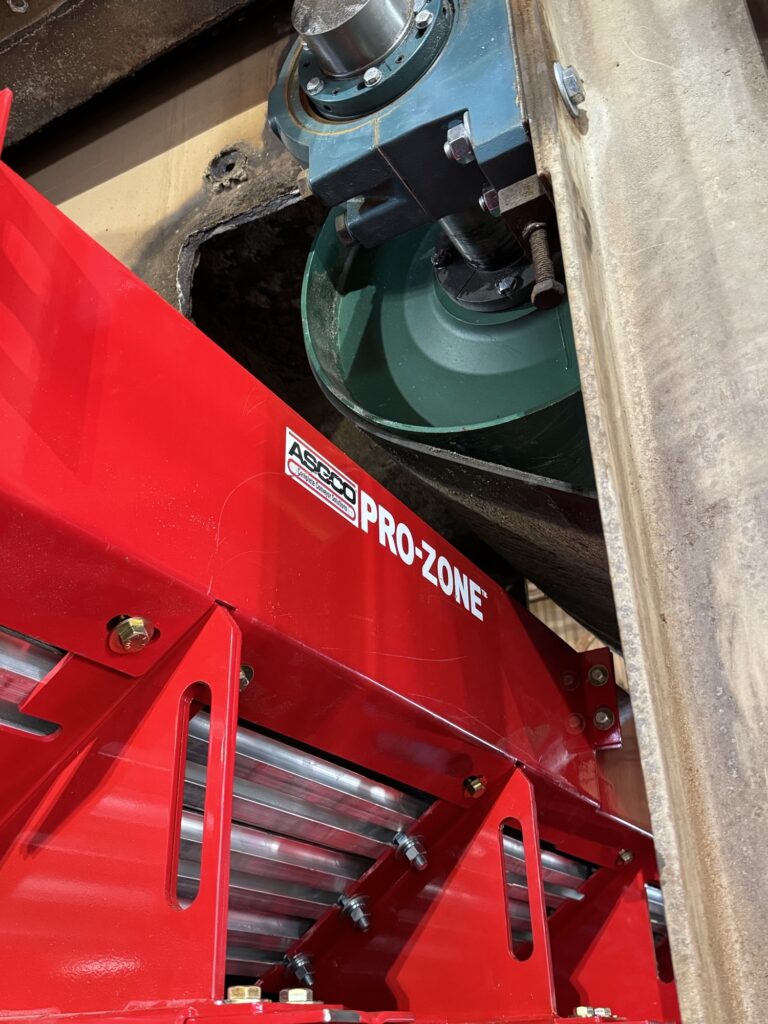

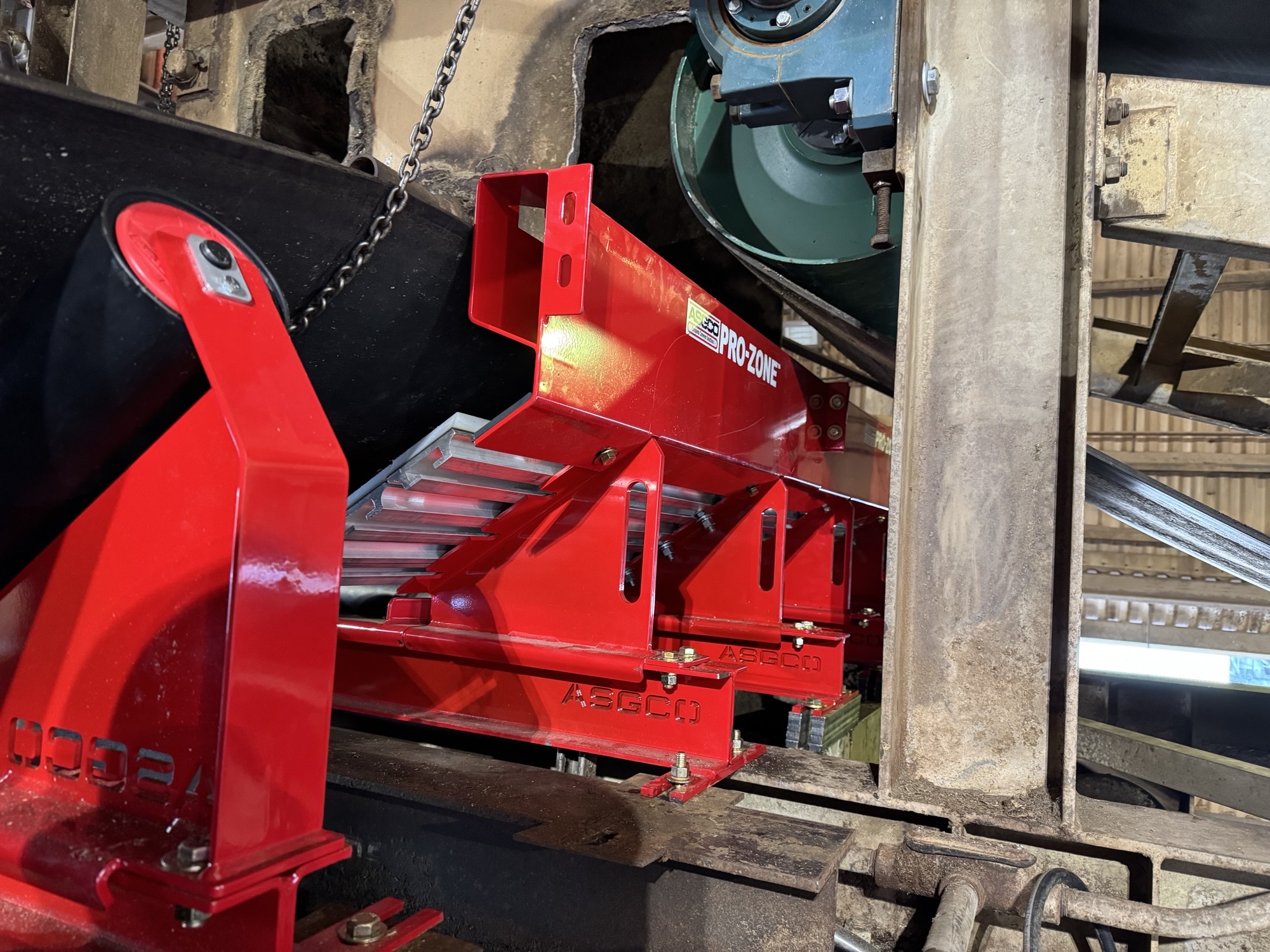

Gallery

PRODUCT SPECIFICATIONS

Applications – Underground Mining, Coal Fired Power Plant, Hard Rock Mining, Steel Mills, Iron Ore, Metals (Copper/gold), Aggregate, Mineral (Phosphate, Potash, Salt) Mining, Sand & Gravel, Redi-Mix and Asphalt, Cement, Wood Processing Recycling

Pro-Zone™ Systems – Can be custom made to meet desire goal. 4’ (1200mm) & 5’ (1500mm) section available

Trough Angle – available in 25°, 35° and 45°

Part Numbers

Pro-Zone™ with 2 Supports

Center rolls not Included

Part Number Belt Width in. Blade Width mm. Weight Lbs
M-ASGPZ-18-2-48-2-(XX) 18 450 215
M-ASGPZ-24-4-48-2-(XX) 24 600 287
M-ASGPZ-30-4-48-2-(XX) 30 750 359
M-ASGPZ-36-6-48-2-(XX) 36 900 430
M-ASGPZ-42-6-48-2-(XX) 42 1050 502
M-ASGPZ-48-6-48-2-(XX) 48 1200 574
M-ASGPZ-54-8-48-2-(XX) 54 1350 646
M-ASGPZ-60-8-48-2-(XX) 60 1500 717
M-ASGPZ-72-10-48-2-(XX) 72 1800 861

Part Numbers

Pro-Zone™ with 3 Supports

Center rolls not included

Part Number Belt Width in. Belt Width mm. Weight Lbs.
M-ASGPZ-18-2-60-3-(XX) 18 600 262
M-ASGPZ-24-4-60-3-(XX) 24 600 350
M-ASGPZ-30-4-60-3-(XX) 30 750 437
M-ASGPZ-36-6-60-3-(XX) 36 900 525
M-ASGPZ-42-6-60-3-(XX) 42 1050 612
M-ASGPZ-48-6-60-3-(XX) 48 1200 699
M-ASGPZ-54-8-60-3-(XX) 54 1350 717
M-ASGPZ-60-8-60-3-(XX) 60 1500 874
M-ASGPZ-72-10-60-3-(XX) 72 1800 1049
