Safe-Guard® Conveyor Chute Inspection Doors

Back

Safe-Guard® Conveyor Chute Inspection Doors

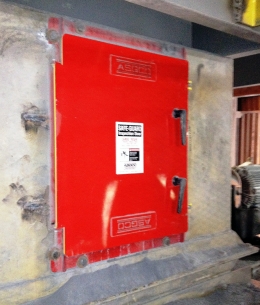

Safe-Guard ® Conveyor Chute Inspection and Access Doors are necessary part of any material handling system. Add an Inspection Door to your existing head chute for safe access to cleaners and chute clean out.



Inspection Door_Standard_Heavy

Inspection Doors

Low Profile steel construction, powder coated or zinc plated
EPDM dust seal can withstand temperatures from 40°F to 200°F
Designed 45° flange frame to prevent fines from accumulation
 Options for materials to fit conditions, including food-grade applications
Quick and easy installation
Custom sizes available

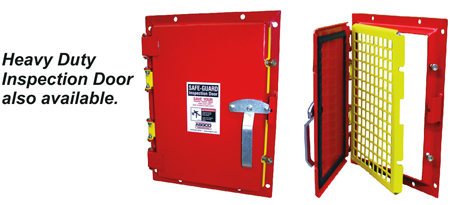

Heavy Duty and Standard sizes available

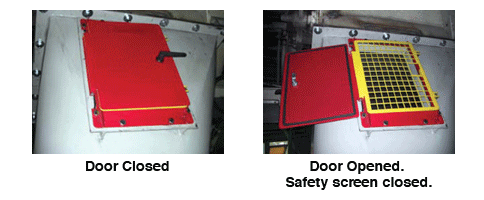

Screen Guard

Standard on every door for safe equipment inspection
 Complies with ANSI B.20.1 1984 and ISO 1819-02.1.11.
Prohibit extremities to break the plane of the chute area
Requires the use of tools to safely open the screen which
   complies with most safety regulations

Regulation

To be in compliance with OSHA and MSHA, the installation
of safety-oriented products can help create a safer plant that
is easier to service and maintain. See OSHA and MSHA
guidelines for safety compliance.

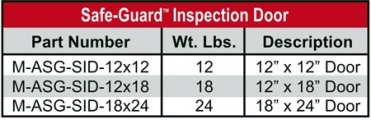

Safe Guard Inspection Door Chart
