Razor-Back MDX® Belt Cleaner


Designed For High Speed & Maximum Tonnage

The Razor-Back MDX® is a secondary belt cleaner designed for high speed and maximum tonnage mining systems running in the most aggressive underground and surface mining environments. The heavy-duty, replaceable, carbide-tipped blades effectively clean the conveyor belt with our dual action tensioning systems to maintain even pressure across the entire belt surface.

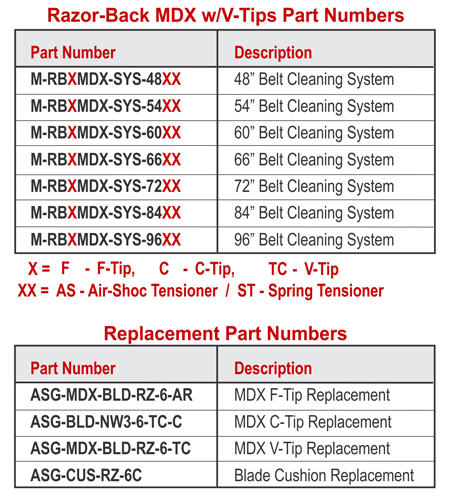

Features & BenefitsRazor Back MDX_part number chart_web

Complete Cleaning – with our combination of cleaning blades
specific for your application and dual tensioning action from
our Spring-Shoc™ or Air-Shoc™ tensioner along with the impact
absorbing rubber tensioning cushions and mounting system.

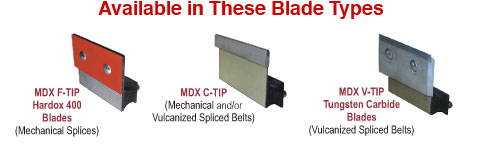

Available with replaceable MDX™ V-Tips – for vulcanized
conveyor belts or MDX® C-Tips for conveyor belts with
mechanical fasteners.

Quick-Change – slide-out mounting system allows for simple
removal of the cleaning cartridge from either side of the conveyor,
without having to remove mounting brackets or the main
mounting tube.

Designed – for the toughest of mining environments and
conditions including underground and surface coal, hard rock,
power plant and load-out facilities.

Compatible and Safe – for mechanically or vulcanized spliced
conveyor belts and its slide-out blade cartridge allows for improve
safety by avoiding workers having to crawl into confined chute
areas or underneath conveyor structures.

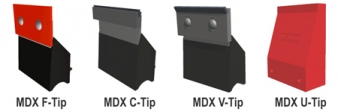

Razor Back MDX_blade chart_web







Product Specifications
  • Maximum Belt Speed – 1200 fpm (6.0 m/sec)
  • Application – Underground Mining, Hard Rock Mining, Metals (copper/gold) Mining,
    Steel Mills, Iron Ore, Bulk Shipping Terminals, Coal Fired Power Plants

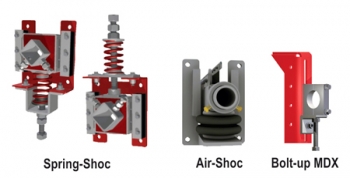

Available TensionersRazor Back MDX_System_web
Spring-Shoc™ Secondary Tensioner

Utilizes a unique patent pending mounting plate that allows
the cleaning blade to be spring tensioned in either a pull-up
or push-up position. This specially designed configurability
features two different mounting options that leave extra
clearance above or below the bracket where necessary.

Razor Back MDX_Tensioner Options_web
