MOST RELIABLE AND RE-ACTIVE CONVEYOR BELT TRACKING IDLERS

Design Features

Continuous Alignment – by always tracking the belt to the center of the conveyor, it reduces edge damage, spillage and overall better conveyor belt tracking performance.
Heavy-Duty – design of our trainer uses 3 7/16″ bearings, 1 3/4″ shaft, and an abrasive resistant hot-vulcanized rubber cover. Urethane covers are also available.
Patented Design – does not rely on the conveyor belt to activate an arm-type tracking mechanism. By utilizing an internal pivot versus external pivot it does NOT build up with carry back.
Reactionary – in both wet and dry conditions as seen in below ground and above ground mining all over the world.
Total Satisfaction Guarantee (TSG) – to solve your conveyor belt tracking problems and make your overall conveyor system run more efficiently.
Idler – can be used for belts traveling in one or reverse direction.

MOST RELIABLE AND RE-ACTIVE BELT TRACKING IDLERS!

The Tru-Trainer^® series of conveyor belt tracking idlers is a patented design that offers the most reliable and re-active belt tracking idlers available today.

Belt Width 16” – 72”

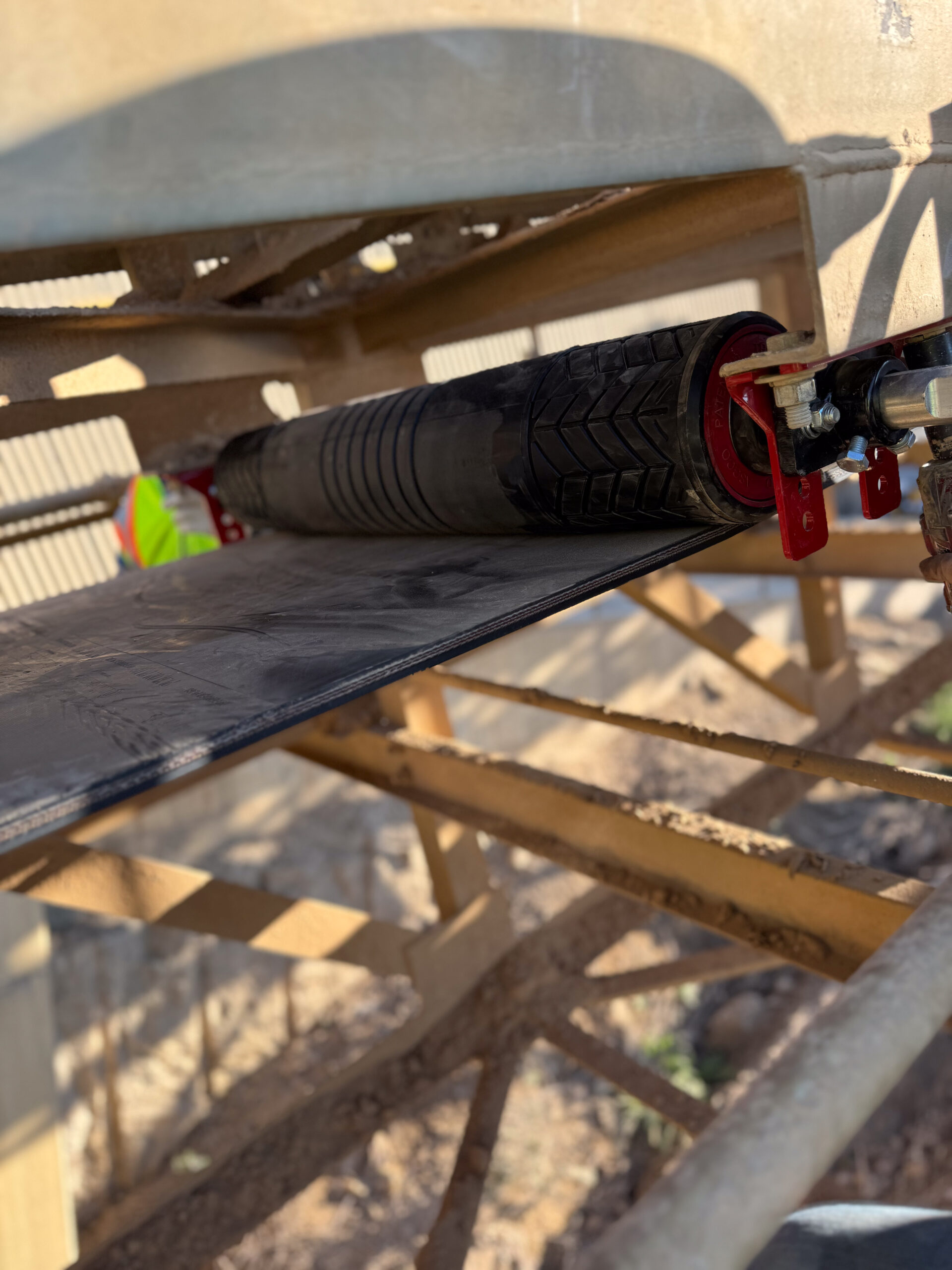

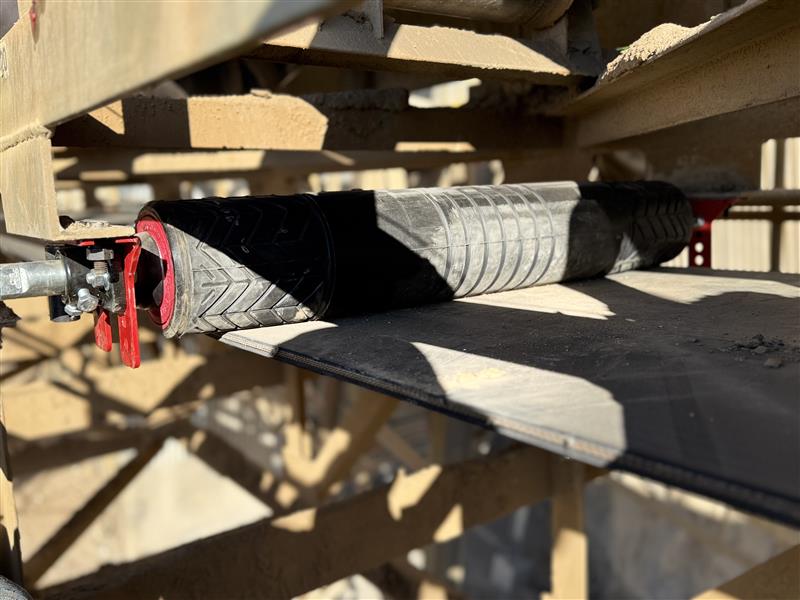

Idlers can be mounted on the topside or clean side of the conveyor belt
Idler can be used for belts traveling in one or reverse direction.

Product Specifications

Application – Aggregate, Cement, Mineral (Phosphate, Potash, Salt) Mining, Underground Mining, Coal Fired Power Plant, Steel Mill, Iron Ore, Bulk Shipping Terminals

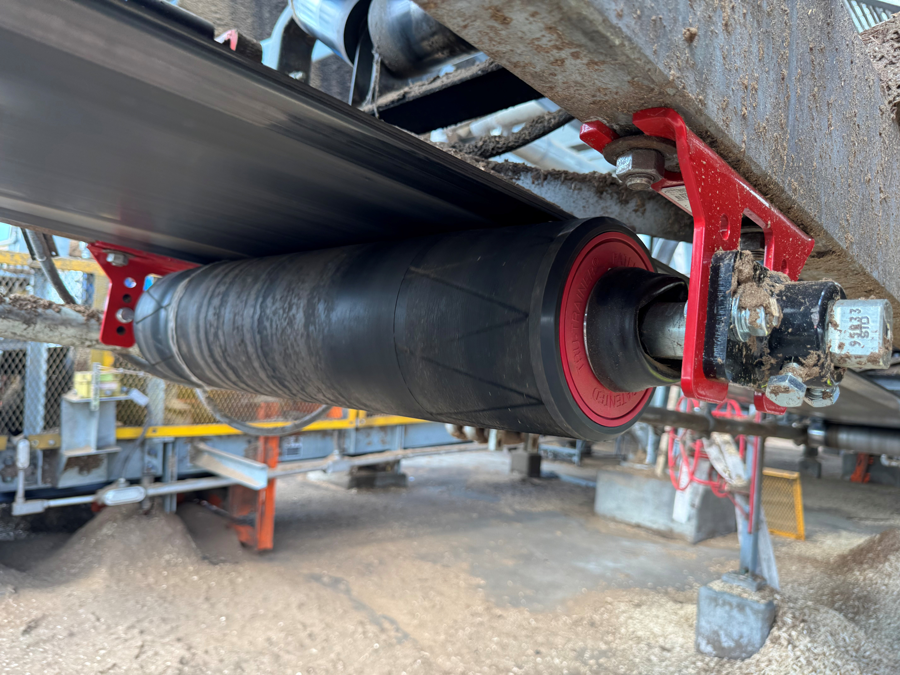

Return Side Trainer

FLAT RETURN AND DUAL RETURN CONFIGURATIONS

TRU-TRAINER APPLICATION GUIDE

Selection criteria	Flat Return Standard	Flat Return Heavy Duty	Dual Return Standard Duty	Dual Return Heavy Duty	Dual Return EXHD
Belt construction	Rubber / fabric	Rubber / fabric	Rubber / fabric / steel cord	Rubber / fabric / steel cord	Rubber / fabric / steel cord
Belt width	450–1,200 mm 18–48 in.	1,350–1,650 mm 54–66 in.	900–2,400 mm 36–96 in.	1,200–2,400 mm 48–96 in.	1,500–2,400 mm 60–96 in.
Belt speed	0–3 m/s 0–600 FPM	2–4 m/s 390–790 FPM	0–4 m/s 0–790 FPM	3.5–5 m/s 690–985 FPM	5–10 m/s 985–1,950 FPM
Belt thickness	Less than 25.4 mm Less than 1 in.	Less than 25.4 mm Less than 1 in.	Less than 25.4 mm Less than 1 in.	25–30 mm 1–1.25 in.	More than 25.4 mm More than 1 in.

Part Numbers

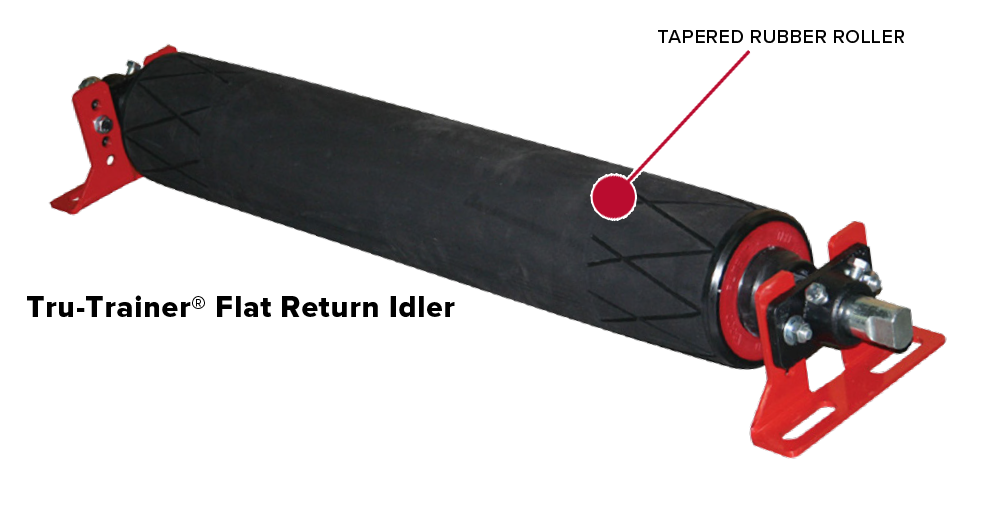

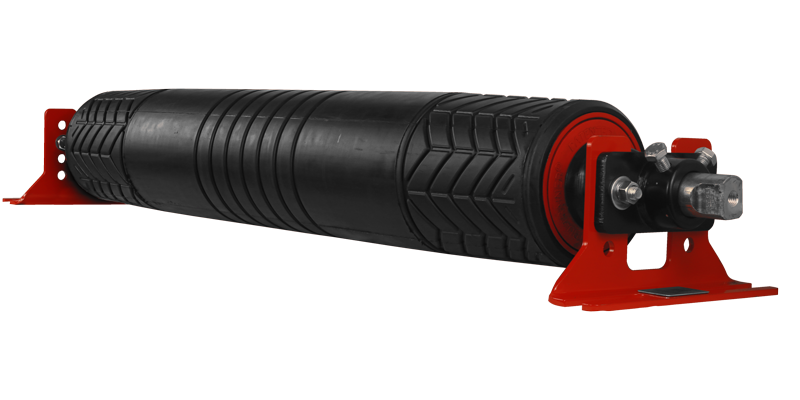

Tru-Trainer^® Flat Return Idler

Part Number	Belt Width in.	Belt Width mm.	Weight lbs
ASG-TTFR-45	18	450	73
ASG-TTFR-50	20	500	77
ASG-TTFR-60	24	600	84
ASG-TTFR-66	26	650	89
ASG-TTFR-75	30	750	93
ASG-TTFR-90	36	900	106
ASG-TTFR-105	42	1050	117
ASG-TTFR-120	48	1200	128
